Description
Please select the correct size for your hose inside diameter (matches the connector’s outside diameter) from the product drop-down box at the top of this page.
| outside diameter (mm) | inside diameter (mm) | overall length (mm) | Rib thickness (mm) | middle length (mm) | middle diameter (mm) |
| 8 | 5.5 | 55 | 1 | 10 | 10 |
| 10 | 7 | 60 | 1 | 10 | 12 |
| 12 | 8.5 | 70 | 1 | 10 | 14 |
| 14 | 9.5 | 70 | 1 | 10 | 16 |
| 16 | 11 | 70 | 1.25 | 10 | 18.5 |
| 18 | 13 | 70 | 1.25 | 10 | 20.5 |
| 20 | 15 | 70 | 1.25 | 10 | 22.5 |
| 22 | 16 | 75 | 1.5 | 10 | 25 |
| 25 | 19 | 75 | 1.5 | 10 | 28 |
| 32 | 26 | 90 | 1.5 | 15 | 35 |
Product Details:

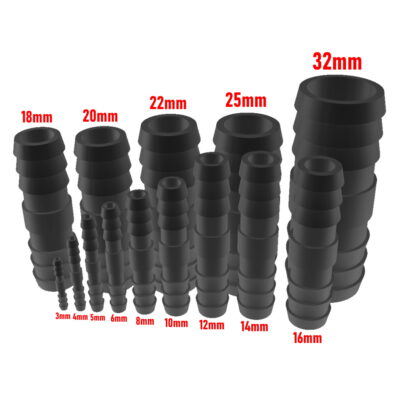

Straight Push-on Hose Connector.
These hose connectors can be fitted quickly and simply by pushing the hose directly onto the connecting parts. The barbs on the connectors enable the hose to sit securely.
- non toxic, tough, lightweight, good impact and wear resistance
- deep moulded ribs
- use hose clips for high pressure applications
- positive sealing
Specifications:
Hose Connector Type: Hose Joiner
Connector Gender: Male
Coupling Connector: Direction Straight
Body Material: White ABS Plastic
